Solar Panel Junction Box Removing Machine

— Solar Panel Junction Box Removing Machine

The Solar Panel Junction Box Removing Machine is the first-step dismantling unit of any professional solar panel recycling line. Available in two configurations — semi-automatic (YS-JBR-S) and fully automatic (YS-JBR-A) — it removes the aluminum frame and the junction box (J-box) from end-of-life photovoltaic modules in a single operation, with PLC-controlled precision, clean material separation and zero damage to the glass surface.

Product Description

The solar panel junction box removing machine is a deframing and J-box removal system for end-of-life (EOL) photovoltaic modules, offered as a semi-automatic model (operator-assisted loading) and a fully automatic model (line-integrated, self-feeding) to match every plant scale.

Both configurations are built on the same proven principle: PLC control, a hydraulic clamping and separation system, and HMI touchscreen operation. They strip the aluminum frame along all four edges and detach the junction box simultaneously, preparing the module for downstream glass removal and silicon recovery. Supported panel sizes range from 1580 × 808 × 40 mm up to 2380 × 1300 × 35 mm, and mechanical dismantling reduces manual labor by more than 90%.

Semi-automatic (YS-JBR-S): one operator loads each panel; the machine positions, clamps, removes the frame, detaches the J-box and discharges the module automatically. The economical choice for small and medium recycling plants.
Fully automatic (YS-JBR-A): automatic infeed conveyor, automatic size recognition and line-integrated discharge run the process continuously with minimal staffing — designed for large-scale plants and complete solar panel recycling lines.

Product Overview

As the global photovoltaic industry matures, the first wave of decommissioned solar modules is arriving. Industry projections point to a massive retirement of PV panels — tens of millions of tonnes by the early 2030s — driven by 25–30 year module lifetimes and the rapid early replacement of damaged or underperforming panels.

In solar panel recycling, the first and most critical step is separating the aluminum frame and the junction box from the module body. These two components together account for roughly 10–15% of the panel’s total weight, yet they contain the highest-value, easiest-to-sell materials:

Aluminum frames — clean, grade-pure aluminum that sells directly to smelters.
Junction boxes and cables — copper conductors, bypass diodes and connectors with real scrap value.
Manual removal of frames and J-boxes is slow, labor-intensive, inconsistent in quality, and exposes workers to sharp edges and electrical components. YuSai Machinery’s junction box removing machine replaces this manual work with a repeatable mechanical process: the panel is aligned, clamped, de-framed, J-box-detached and discharged in a single automated cycle — in a fraction of the time a manual crew needs for one panel.

One process, two automation levels

YuSai builds the machine in two configurations around the same core dismantling station, so buyers can scale automation to their business:

Semi-automatic — YS-JBR-S. The operator places the waste panel on the infeed table; the machine then handles positioning, clamping, frame separation, junction box removal and discharge automatically. Touchscreen size presets allow quick switching between mixed panel dimensions. This configuration is the ideal entry point for recyclers, E-waste plants, PV distributors and renewable-energy service companies entering the solar recycling business with a compact footprint and moderate investment.

Fully automatic — YS-JBR-A. Built for continuous, high-volume operation, this configuration adds an automatic panel infeed conveyor, automatic size recognition, and automated discharge that feeds the prepared module directly to the next station (glass removal). It integrates seamlessly as the front-end of a complete solar panel recycling production line — frame/J-box removal → glass removal → crushing → sorting → silicon and metal recovery — and can run around the clock with minimal staffing.

Whichever configuration you choose, the machine can operate standalone or as the first station of the full YuSai solar panel recycling line, protecting downstream material quality and raising the overall recovery rate of your plant.

Recycling Value Analysis

Why the junction box matters economically

Every solar panel contains exactly one junction box. When a recycling plant processes panels in volume, J-boxes accumulate into a significant secondary material stream that most operators currently discard or dismantle by hand.

Typical junction box contents:

Copper conductors / ribbons — high-grade copper; the highest-value fraction.
Bypass diodes & connectors — copper plus electronic components; medium value.
Housing — engineering plastic (PPO/PA); low value but recyclable.
Potting compound (some models) — epoxy or silicone; removed during processing.

Copper conductors are the primary target material inside J-box scrap. Recovering them mechanically — instead of sending boxes to general waste — turns a disposal cost into a consistent copper revenue stream that accumulates with every panel processed.

The bigger picture: what a full panel yields

A standard 60/72-cell silicon PV module contains, on average:

Glass — roughly 65–70% of panel weight; goes to clean glass recycling.
Aluminum frame — around 10%; direct smelter-grade scrap.
Junction box + cables — around 3–4%; copper recovery (this machine).
Silicon cells & silver paste — around 3–5%; silicon / silver recovery downstream.
EVA / backsheet / plastics — around 10–15%; pyrolysis or crushing-sorting.

Up to 95% of a PV module’s material can in principle be recycled. Because frame and J-box removal happens before glass and cell processing, doing this step mechanically — rather than by hand — protects downstream material quality and directly improves the recovery rate of the whole line.

Manual vs. mechanical dismantling

Compared with manual dismantling, the YuSai junction box removing machine changes five things:

Process pace — minutes per panel per worker by hand, versus seconds per panel per cycle on the machine.
Consistency — manual results depend on the operator; the machine delivers repeatable, uniform separation every cycle.
Glass damage risk — manual handling often chips or cracks glass; the machine protects the glass by design.
Labor requirement — a full dismantling crew becomes one operator (semi-automatic) or minimal supervision (fully automatic).
Safety — manual work means sharp frame edges and electrical exposure; the machine runs enclosed and guarded.

Applied Materials

Both configurations handle end-of-life photovoltaic modules of the following types:

Monocrystalline silicon panels (Mono-Si) — 60-cell, 72-cell and half-cut cell formats
Polycrystalline silicon panels (Poly-Si)
Standard framed modules with aluminum alloy frame (anodized aluminum profile)
Bifacial / double-glass modules (with appropriate configuration — contact us for options)
Most standard commercial and utility-scale panel sizes:
- Minimum: 1580 × 808 × 40 mm (e.g., 60-cell residential modules)
- Maximum: 2380 × 1300 × 35 mm (e.g., 72-cell and large-format utility modules)
Junction boxes: both non-potted (openable housing) and potted (epoxy-encapsulated) types, with or without attached DC cables
Mixed batches:
- Semi-automatic model: panel sizes are stored as touchscreen presets — switching between mixed incoming panels takes seconds, with no mechanical re-tooling.
- Fully automatic model: panel dimensions are recognized automatically as each module enters, so mixed batches run through without operator intervention.

Not suitable for: frameless glass–glass laminates without frame or J-box (process those with dedicated glass–glass recycling lines), or panels with severely damaged/bowed frames (pre-screening recommended).

Product Structure (Main Equipment)

Both configurations are built around a heavy-duty welded steel frame with four support columns. The core dismantling station integrates five sub-systems:

1. Conveying & Feeding System

Semi-automatic: rear infeed conveyor carries the operator-loaded panel onto the working platform.Fully automatic: powered infeed conveyor receives panels from upstream stacking/pallet handling and feeds them continuously.Side positioning units align the module automatically against reference edges.

2. Clamping & Fixing System

Upper clamping mechanism (hydraulic) presses the panel firmly onto the working bed.Prevents movement and glass flexing during frame separation.

3. Frame Separation System

Hydraulic separating tooling works along the four panel edges in sequence.Separates the aluminum frame profile from the laminate without scoring the glass.

4. Junction Box Removal System

Dedicated J-box detachment tooling engages the box on the back of the module.Pries/cuts the box free from the EVA-bonded area, together with cable glands, without cutting into the laminate.

5. Control & Power System

PLC controller + HMI touchscreen (panel size presets, fault diagnosis, I/O monitoring).Hydraulic power unit (reservoir, gear pump, motor, valves).Pneumatic cylinders for auxiliary actions (positioning, clamping assist).Safety devices: emergency stop, dual-hand operation (semi-automatic), protective guards, light curtain (optional).

Fully automatic expansion units (YS-JBR-A only):

Automatic infeed conveyor — continuous panel supply, synchronized with the dismantling cycle.
Automatic size recognition — sensors/vision scan each incoming module and set the working parameters automatically, no manual size selection.
Automatic discharge & handover — the de-framed module is transferred directly to the downstream glass removal station; frames and J-boxes are routed to their collection points automatically.

Process Flow

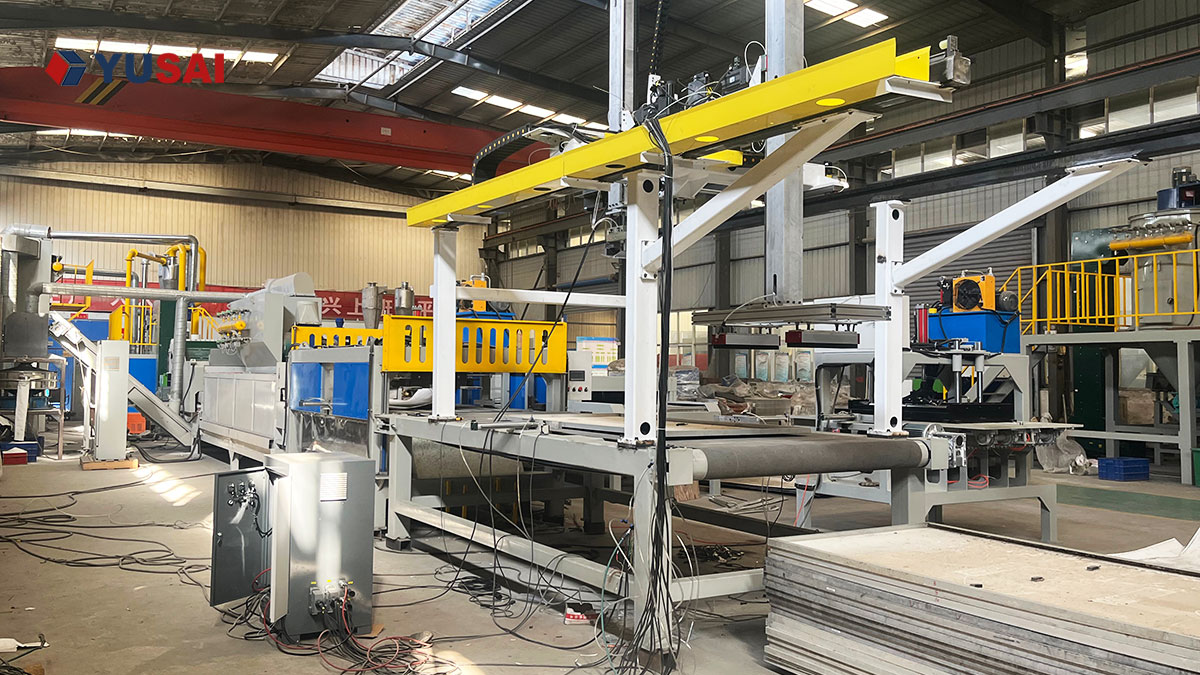

Integration in a complete solar panel recycling line

The junction box & frame removing machine is the front-end station of a complete YuSai solar panel recycling line. Waste solar panels travel through the line station by station, and every station delivers a clean, saleable material stream:

Station 1 — Frame & J-box removal (this machine). Waste solar panels enter the junction box & frame removing machine (YS-JBR-S or YS-JBR-A). The aluminum frame is separated and sold directly as smelter-grade scrap; the junction box with cables is removed in the same cycle and routed to copper recovery. The de-framed laminate moves on to the next station.

Station 2 — Glass removal. The glass removing machine separates the tempered front glass from the laminate, producing clean glass granules for the glass recycling market.

Station 3 — Solar Panel Crushing Sorting System. The de-framed, de-glassed laminate (silicon cells, EVA, backsheet) enters the solar panel crushing sorting system — a single dry-mechanical workflow with no water and no chemicals. The laminate is shredded and crushed into small particles, with a dust collector keeping the process clean and the recovered material free of fine losses; a vibration separator classifies the crushed particles by size; a grinder further liberates the materials from each other; an air separator removes the light fractions such as EVA and plastic film; and an electrostatic separator finally sorts the remaining mixture into three clean streams — copper powder, plastic powder, and silver & silicon powder.

Station 4 — Silver recovery. The silver & silicon powder is sent to silver extraction, which refines it into silver ingots — the highest-value end product of the line.

The full line recovers aluminum, glass, copper, plastics, silicon and silver — turning decommissioned modules into marketable raw materials.

Semi-automatic operation (YS-JBR-S)

Loading — The operator places the waste solar panel onto the infeed table/conveyor; the panel is conveyed onto the working platform.
Size selection — The operator selects the panel size on the touchscreen (or it is recalled from the preset library). Automatic positioning follows — no manual mechanical adjustment.
Positioning & clamping — Side positioning units align the module; the upper clamping mechanism fixes it securely.
Frame removal — The hydraulic separation tooling removes the aluminum frame along all four edges in sequence; the frame drops onto a collection chute.
Junction box removal — The J-box detachment unit separates the junction box (with cables) from the backsheet in the same work cycle.
Reset & discharge — The system auto-resets; the prepared module (glass + cells laminate) is transferred forward, while frame and J-box are collected separately. The next panel can be loaded immediately.

Fully automatic operation (YS-JBR-A)

Continuous feeding — Panels are fed automatically from the upstream conveyor into the dismantling station, cycle after cycle, without manual handling.
Automatic recognition — The size recognition system scans each panel and sets positioning and separation parameters automatically.
Positioning & clamping — Automatic alignment and hydraulic clamping secure the module.
Frame removal — Hydraulic tooling removes the aluminum frame along all four edges; frames are routed to the collection point.
Junction box removal — The J-box detachment unit removes the junction box and cables in the same cycle.
Automatic handover — The prepared module is discharged directly onto the downstream glass removal station; the cycle repeats continuously. Designed for line-integrated, around-the-clock operation.

Product Features

Two automation levels, one process — choose semi-automatic (YS-JBR-S) for flexible, operator-assisted production, or fully automatic (YS-JBR-A) for continuous line-integrated throughput.
Frame and J-box removed in one pass — one work cycle, two separation results, no separate stations required.
No glass damage — hydraulic force is applied to the frame profile, not the laminate; glass stays intact for high-value glass recycling.
Touchscreen size presets (semi-automatic) — store multiple panel dimensions; switching between mixed panels takes seconds, no wrench or re-tooling.
Automatic size recognition (fully automatic) — mixed incoming batches run without operator intervention.
PLC + hydraulic + pneumatic integration — stable, repeatable cycles suitable for continuous operation.
High throughput — each cycle completes in seconds, several times faster than manual dismantling per worker.
Compact footprint — approx. 2.9 × 2.8 × 2.1 m core station; fits small and medium recycling plants (the fully automatic version adds an infeed conveyor module).
Low power consumption — economical installed power for both models.
Simple maintenance — open structure, accessible cylinders and valves; fault diagnosis via PLC touchscreen I/O interface.
Safety by design — emergency stop, guarded work area, dual-hand start option on the semi-automatic model.
Scalable — start with YS-JBR-S, upgrade to YS-JBR-A, or integrate either into the full YuSai solar panel recycling line.

Technical Parameters

Reference specifications for the two standard configurations. Customization available on request.

Parameter	YS-JBR-S (Semi-Automatic)	YS-JBR-A (Fully Automatic)
Automation	Operator-assisted loading	Fully automatic, line-integrated
Supported panel size	1580 × 808 × 40 – 2380 × 1300 × 35 mm	1580 × 808 × 40 – 2380 × 1300 × 35 mm
Panel size changeover	Touchscreen presets	Automatic recognition
Frame / J-box removal	Automatic, in one cycle	Automatic, in one cycle
Control system	PLC + HMI touchscreen	PLC + HMI touchscreen
Drive system	Hydraulic + pneumatic	Hydraulic + pneumatic + conveyors
Operators required	1 operator	Minimal staffing
Power supply	380 V / 50 Hz, 3-phase (220 V / 60 Hz optional)	380 V / 50 Hz, 3-phase (220 V / 60 Hz optional)
Best suited for	Small & medium recycling plants	Large-scale plants & full recycling lines

Processing capacity varies with panel size, frame condition and configuration — contact YuSai with your material for a matched recommendation.

Advantages

Compared with manual dismantling:

Labor cost reduced by more than 90% — one operator (semi-automatic) or minimal supervision (fully automatic) replaces a full manual dismantling crew.
Consistent separation quality — every panel processed identically; no damage to glass or cells, which protects downstream recovery rates.
Higher safety — eliminates cut hazards from sharp frame edges and exposure to electrical components.

Compared with other machines on the market:

Dual function in one cycle — many machines remove only the frame, leaving J-box removal as a second manual step. YuSai machines do both in the same cycle.
No mechanical re-tooling for mixed sizes — touchscreen presets (semi-automatic) or automatic recognition (fully automatic) beat manual-adjustment machines on mixed incoming panels.
Choice of automation level — competitors typically offer only one configuration; YuSai lets you match investment and staffing to your actual scale, and upgrade later.

Business advantages:

Fast payback — aluminum frame and J-box copper are sold directly as scrap, while downstream glass and silicon streams gain value from clean, damage-free separation.
Future-proof scalability — start semi-automatic; the core station is designed to step up to the fully automatic configuration and the complete solar panel recycling line as your volume grows.
Turnkey support — machine, spare parts, installation guidance, training and after-sales from a single manufacturer.

Quality System

YuSai Machinery (Henan YuSai Precision Machinery Co., Ltd.) operates an integrated quality management system covering design, manufacturing, testing and after-sales:

ISO 9001 quality management — process-controlled production with documented procedures.
CE-compliant electrical and safety design — CE certification available per destination market requirements.
Material quality — heavy-duty welded steel frame, hardened tooling, branded hydraulic and electrical components, PLC from major manufacturers.
Full testing before delivery — every machine is test-run with the customer’s actual material in simulated production conditions; separation quality is verified before shipment.
Inspection checkpoints — incoming material inspection → in-process inspection → assembly inspection → continuous running test → final quality inspection and packing.
Documentation — each machine ships with operation manual, wiring diagram, hydraulic/pneumatic schematic, and test report.

Service Process

From first inquiry to daily operation, YuSai provides a complete service flow:

Consultation — tell us your panel types, daily volume, workshop conditions and power supply; our engineers reply within 24 hours.
Solution design — we recommend the right configuration — semi-automatic or fully automatic — with layout sketch and line-integration plan.
Quotation — transparent pricing with clear scope (machine, options, spares, freight terms).
Production — standard models ship within 15–30 days; customized configurations per agreement.
Pre-delivery testing — machine test-run with your material; video test reports provided.
Delivery & installation — worldwide shipping; installation supervision and commissioning available on-site or via video guidance.
Operator training — hands-on training on operation, size presets (semi-automatic), automatic mode handling (fully automatic), daily maintenance and troubleshooting.
After-sales support — spare parts supply, remote diagnosis, lifetime technical consultation.

Warranty & After-Sales

12-month warranty on the whole machine against manufacturing defects (consumables excluded).
Spare parts guarantee — common wear parts (seals, hoses, sensors) kept in stock; shipment within 48 hours for urgent orders.
Remote support — video call assistance for installation, commissioning, troubleshooting and fault diagnosis; PLC programs can be remotely checked where network access is available.
Lifetime technical service — free technical consultation for the life of the machine.
Response commitment — inquiry reply within 24 hours; technical response within 48 hours.
Overseas installation option — our engineers are available for on-site installation and training (travel costs per agreement).

Frequently Asked Questions (FAQ)

Q1: What is a solar panel junction box removing machine?
A solar panel junction box removing machine is recycling equipment that removes the aluminum frame and the junction box from end-of-life photovoltaic modules as the first step of PV recycling. YuSai offers it in two configurations: semi-automatic (YS-JBR-S) and fully automatic (YS-JBR-A). It separates these components mechanically so that aluminum, copper and the remaining glass/cell laminate can each be recycled efficiently.

Q2: Why is junction box removal the first step in solar panel recycling?
The frame and J-box contain the most valuable easily-recoverable materials (aluminum and copper) and must be removed before glass separation and cell processing. Removing them mechanically protects the glass and cells, improving downstream recovery rates.

Q3: What is the difference between the semi-automatic and fully automatic models?
The core dismantling station is the same; the difference is automation around it. The semi-automatic YS-JBR-S needs one operator to load each panel and select the size on the touchscreen — the machine does the rest automatically. The fully automatic YS-JBR-A adds an automatic infeed conveyor, automatic size recognition and automatic discharge to the next station, running continuously with minimal staffing. Choose YS-JBR-S to start flexibly at lower investment; choose YS-JBR-A for large-scale, line-integrated, around-the-clock processing.

Q4: How do I decide which configuration to buy?
Consider your daily volume, labor availability and whether you plan a full recycling line. Small and medium plants entering PV recycling usually start with the semi-automatic model; plants processing high volumes, or those building a complete solar panel recycling line, should select the fully automatic model. Tell YuSai your volume and layout — we will match the configuration.

Q5: How fast is the machine?
Each dismantling cycle completes in seconds — several times faster than manual dismantling per worker. Actual throughput depends on panel size, frame condition and configuration; contact us with your material for a capacity-matched answer.

Q6: What panel sizes can it handle?
Both models support standard PV modules from 1580 × 808 × 40 mm (60-cell residential) up to 2380 × 1300 × 35 mm (72-cell and large-format utility panels). Custom ranges are available.

Q7: Does it damage the glass?
No. The hydraulic separation force is applied to the aluminum frame profile, not the laminate, so the glass surface is protected and can be recycled at high value.

Q8: Can it process different panel sizes without mechanical adjustment?
Yes. On the semi-automatic model, panel sizes are stored as presets on the HMI touchscreen — switching takes seconds with no wrench or re-tooling. On the fully automatic model, sizes are recognized automatically as each panel enters.

Q9: What is worth recovering from junction boxes?
Copper conductors, bypass diodes and connectors inside the J-box are the target materials. Mechanically removing boxes from every panel you process builds a consistent copper scrap stream instead of paying to dispose of it.

Q10: Can the machine be integrated into a full solar panel recycling line?
Yes. It is designed as the front-end unit of a complete line (frame/J-box removal → glass removal → crushing → sorting → silicon & silver recovery). The semi-automatic model can operate standalone; the fully automatic model is built for direct line integration.

Q11: What power supply does it need?
Standard configuration is 380 V / 50 Hz three-phase, with 220 V / 60 Hz available on request. Installed power is low for both models; the exact rating is provided with the quotation.

Q12: What is the warranty?
12 months against manufacturing defects, plus spare parts supply, remote support and lifetime technical consultation.

Q13: Do you offer installation and training?
Yes — installation supervision and operator training (for both configurations) are available on-site or via video guidance, and our engineers can travel for on-site commissioning.

Q14: How long is delivery?
Standard models ship within 15–30 days of order confirmation; customized configurations per agreement.
